Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse

10
MOQ
$299
fiyat
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Bıçak malzemesi: dökme demir
Fan Malzemesi: Alüminyum
Kapak malzemesi: Galvanizli çelik
Fan tipi: merkezkaç
Güç kaynağı: 380V
Hava hacmi: 2600-6500cfm
Hava hızı: 30 m/s
Motor gücü: 1350-3400W
Gürültü seviyesi: 70-74dB
etkili mesafe: 7-8m.
Fan çarkı çapı: Φ160mm
Boyutlar: 900-2000x352x306mm
hayran sayısı: 2-5pc
Gerilim frekansı: 380V/60HZ
Montaj türü: Duvara fan
Vurgulamak:

Powerful Air Volume 30m/s Industrial Air Curtain

,

380V Power Supply Industrial Air Curtain

,

2600-6500CFM Air Volume Industrial Air Curtain
Temel bilgiler
Menşe yeri: Guangdong, Çin
Marka adı: Theodoor
Sertifika: CCC
Model numarası: FM-6509A
Ödeme & teslimat koşulları
Ürün Açıklaması
Industrial Air Curtain with Powerful 30m/s Airflow for Factory and Warehouse Applications
This high-performance industrial air curtain creates a powerful air barrier (up to 30m/s velocity) ideal for factory entrances, warehouse doors, terminals, and other commercial openings. Its durable construction and efficient design provide reliable performance in demanding environments.
Key Features
  • Robust Construction: Square reinforced structure made from galvanized steel with powder coating for superior durability and resistance to deformation
  • Powerful Airflow: Centrifugal metal fan blower (Φ160 diameter) delivers exceptional air velocity up to 30m/s
  • Large Air Outlet: Designed for maximum air volume coverage
  • Stable Performance: Steel centrifugal turbine fan and high-velocity motor ensure reliable operation in special environments
  • Versatile Applications: Suitable for plants, cold storage facilities, garages, workshops, and other industrial settings
Technical Specifications
Model Fan Wheel Dia. (mm) Dimensions (mm) Voltage/Frequency (V/Hz) Motor Power (W) Air Volume (m³/h) Air Velocity (m/s) Number of Fans Noise (dB) Effective Range (m)
FM-6509A Φ160 900×352×306 380/60 1350 4510 30 2 70 7-8
FM-6510A Φ160 1000×352×306 380/60 1450 4950 30 2 70 7-8
FM-6512A Φ160 1200×352×306 380/60 2100 6760 30 3 71 7-8
FM-6515A Φ160 1500×352×306 380/60 2700 9000 30 4 72 7-8
FM-6518A Φ160 1800×352×306 380/60 2900 10000 30 4 73 7-8
FM-6520A Φ160 2000×352×306 380/60 3400 11200 30 5 74 7-8

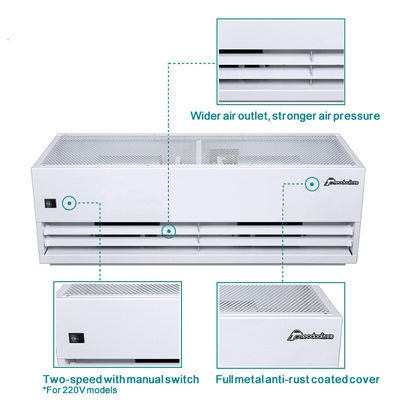

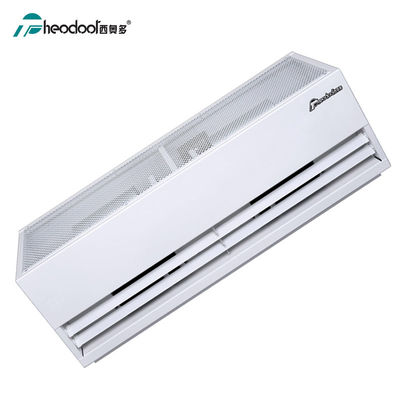

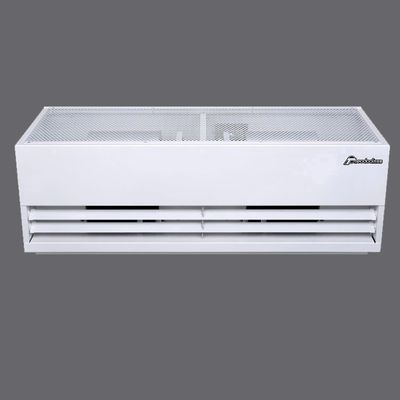

Industrial air curtain unit showing front view with air outlet Side view of industrial air curtain showing mounting brackets Industrial air curtain installed above warehouse door
Frequently Asked Questions
What are the main functions of an air curtain?
  • Dust and insect prevention
  • Odor isolation
  • Energy savings
  • Comfortable heating
How to select the right air curtain?
Consider these factors when choosing an air curtain:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level requirements
  • Power consumption
